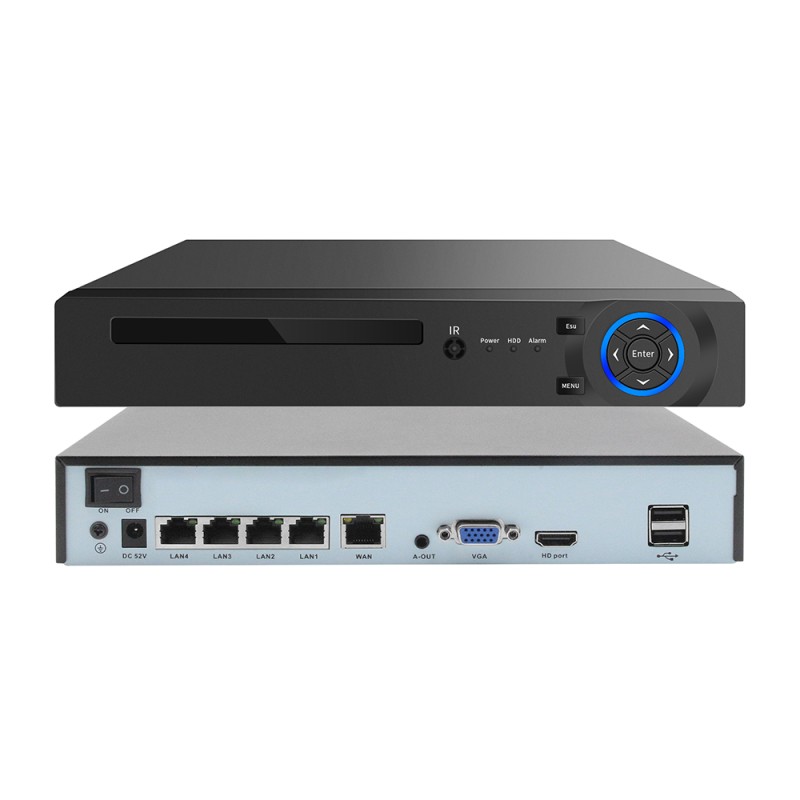

PoE NVR With 4CH DC 48V POE Output
(0 Reviews)
Out of Stock
Made in China
Share:
Sold By
TRISOLINE
(0 customer reviews)
| Model No. | NST-NVR7504P-4K | |
System | Main processor | Hi3798M |
| Operating system | Embedded Linux | |
| System resource | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
Interface | Operation interface | 16-bit true color graphic menu operation interface, support mouse operation |
Preview | 1/4/8 | |
Video | Video input (IP) | 4*4K/4*5M/4*4M /8*1080P |
Video standards | PAL(625TVL,50f/s) ; NTSC(525TVL,60f/s) | |
Forwarding bandwidth | H.265/H.264 | |
| Display quality | Max:4K | |
| Playback quality | 4K/5M/4M/1080P | |
| Decode | 1*4K/2*5M/4*4M/4*1080P | |
| Motion detection | Depend on camera | |
Audio | Audio compression | G.711A |
| intercom | Unsupport | |
Record and playback | Record mode | Manual>Alarm>Video Detection>Continuous |
| Local playback | 1*4K/2*5M/4*4M/4*1080P | |
| Search mode | Search by Time/Calendar/Event/Channel | |
Storage and back up | Record Storage | HDD 、 network |
| Backup mode | Network backup, USB hard disk, USB burner, SATA burner | |
Interface | Video output | 1ch HDMI HD output(can be extended to support VGA) |
| Audio I/O | 0/0 | |
| Alarm I/O | 0/0 | |
| Network interface | 1* 10M/100M Adaptive Ethernet port,4 POE ports | |
| USB interface | 2*USB2.0 ports | |
| Hard disk | 1*SATA(extensible 2 SATA interface) (Up to 8TB for each disk) | |
other | ONVIF | Support |
PTZ control | Control PTZ device by network | |
| Power supply | 48V/1.5A | |
| Power Consumption | <10W(Without HDD) | |
| Work environment | Temperature:0℃- + 55℃ , Humidity:10% - 90%RH , Atm:86kpa - 106kp | |
| Dimension | L350*W275*H80MM | |
| Weight | 1.6KG | |
